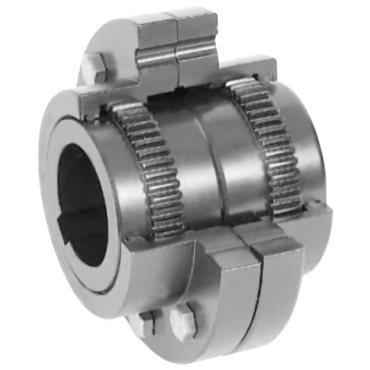

Lovejoy F5ERHUBRSB F5E RHUB RSB Gear Coupling Hub

Product Description

The Lovejoy F5ERHUBRSB is a rigid gear coupling hub designed for connecting two rigidly mounted shafts without allowances for misalignment. This component is vital in diverse applications where reliable torque transmission is essential.

• Size F5 Gear Coupling Rigid Hub
• RSB
• Bore Range: four to eight and three-quarters inches

Product Highlights

Durable design for effective power transfer in high-torque applications.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: F5ERHUBRSB

Technical Specifications

• Coupling Type: Gear Coupling Hubs
• Insert Style: Unbored
• RPM [Max]: 2500
• Torque Rating: 434700 in lb
• Hub Dia.: 11.56 in
• Outside Dia.: 11.56 in
• Bore Dia. [Max]: 8 3/4 in
• Bore Dia. [Min]: 4 in
• Length Through Bore: 5.69 in
• Material: 1045 Carbon Steel
• HP @ RPM: 690 hp @ 100 rpm
• Flange Type: Exposed Bolt
• Keyway Size: No Keyway
• Weight: 191.0 lb
• EAN or UPC: 697904002300
