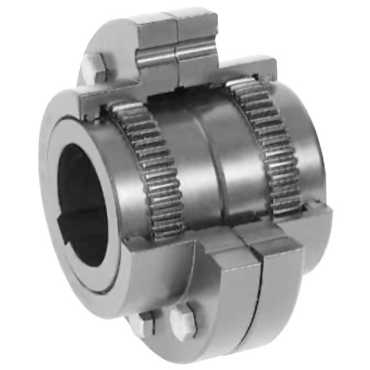

Lovejoy F3SSLEEVE F3S Sleeve | Sier-Bath Coupling Sleeve

Product Description

The Lovejoy F3SSLEEVE is a Sier-Bath coupling sleeve designed for efficient transmission of power in various mechanical applications. It features a smooth, one-piece alloy steel construction which can come with an exposed or shrouded bolt design. This sleeve is built for durability and long-lasting performance.

• Heat-treated bolts provide high strength and corrosion resistance
• O-ring seals ensure secure fitting and performance
• Patented Vari-Crown gear teeth for extended service life

Product Highlights

The F3SSLEEVE can handle a larger bore capacity and is equipped to fit higher speeds, resulting in less vibration. It efficiently compensates for angular, parallel, and axial misalignment, making it suitable for varied applications.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: F3SSLEEVE

Technical Specifications

• Material: 1045 Carbon Steel
• HP @ RPM: 150 hp @ 100 rpm
• Coupling Size: F3
• Style: Shrouded Bolt Sleeve
• Seal Type: O-Ring
• Application: Driver and Driven
• Torque Rating: 94500 in lb
• Size of Bolts: 1/2 - 20
• Type: Standard Sleeve, Sleeves
• Length: 3.590 in
• RPM [Max]: 4000 rpm
• Bolt Holes: 12
• Flange Type: Shrouded Bolt
• RPM: 1800 rpm
• Bolt Circle Diameter: 8 in
• Weight: 13.5 LB
• EAN or UPC: 697904001990
