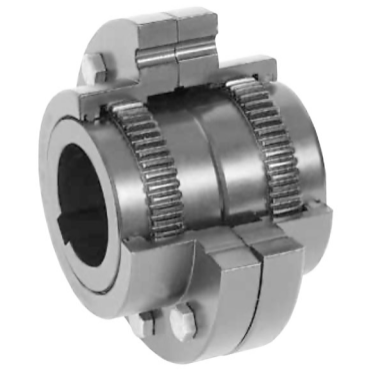

Lovejoy F2ESLEEVE F2E Sleeve | Sier-Bath Coupling Sleeve

Product Description

The Lovejoy F2ESLEEVE is a Sier-Bath coupling sleeve designed for industrial applications. This sleeve is made from alloy steel and features either an exposed or shrouded bolt design, offering flexibility for various installations.

• Constructed for high performance and durability
• Accommodates angular, parallel, and axial misalignment
• Designed for applications with a maximum speed of five thousand RPM

Product Highlights

This coupling sleeve ensures secure connections between driver and driven components while minimizing vibration.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: F2ESLEEVE

Technical Specifications

• Seal Type: O-Ring
• Material: 1045 Steel
• Type: Sleeves
• Bore Diameter (Max): 2.8740 inches
• Speed (RPM): 5000
• Coupling Size: F2
• Torque: 31500 in lb
• HP @ RPM: 50 hp @ 100 rpm
• Style: Exposed Bolt Sleeve
• Bolt Circle Diameter: 5 7/8 inches
• Torque Rating: 31500 in lb
• Flange Type: Exposed Bolt
• Distance Between Shaft Ends: 0.13 inches
• Length: 2.440 inches
• Size of Bolts: 1/2 - 20
• Length Through Bore: 2.44 inches
• Application: Driver and Driven
• Flange Diameter: 7 inches
• Weight: 6.61 lb
• EAN or UPC: 697904001747
