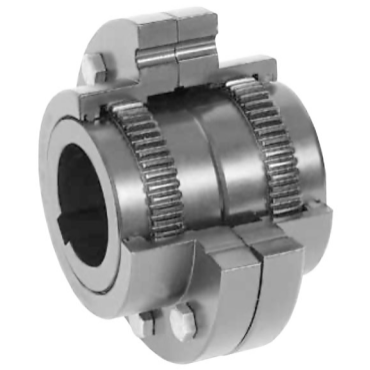

Lovejoy F2.5SSLEEVE F2.5 Coupling Sleeve

Product Description

The Lovejoy F2.5SSLEEVE is a reliable Sier-Bath coupling sleeve designed for efficient power transfer in mechanical systems. It features a smooth, one-piece alloy steel construction with an option for either exposed or shrouded bolt design. This product is suitable for various applications where alignment and vibration control are critical.

• Constructed with heat-treated bolts for enhanced strength
• Patented Vari-Crown gear teeth for durability
• O-ring seals to prevent leaks

Product Highlights

This coupling sleeve compensates for angular, parallel, and axial misalignment, making it versatile for different mechanical setups.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: F2.5SSLEEVE

Technical Specifications

• Length: 3.030 inches
• Bore Diameter (Max): 3.3460 inches
• Seal Type: O-Ring
• Material: 1045 Steel
• Coupling Size: F2.5
• Length Through Bore: 3.03 inches
• Style: Shrouded Bolt Sleeve
• RPM: 1800 rpm, 4400 rpm
• Torque Rating: 56700 in lb
• Weight: 11.15 lb
• Flange Diameter: 8.38 inches
• Application: Driver and Driven
