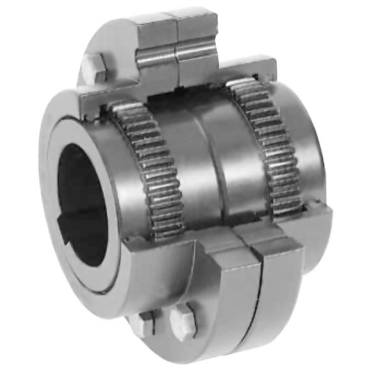

Lovejoy F2.5SRHUBRSB F Series Gear Coupling Hub

Product Description

The Lovejoy F2.5SRHUBRSB is a F Series gear coupling hub designed for high efficiency in various applications. This hub compensates for angular, parallel, and axial misalignment, which enhances the reliability of the connected systems.

• Max bore diameter of four and one-fourth inches
• Rated for speeds up to four thousand four hundred RPM
• Constructed from AISI 1045 material for durability

Product Highlights

The hub features patented Vari-Crown gear teeth, ensuring longevity and reduced stress under misaligned conditions.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: F2.5SRHUBRSB

Technical Specifications

• Color: Metallic
• Bore Diameter (Max): 4 1/4 in
• RPM: 4400
• Flange Type: Shrouded Bolt
• Bore Type: Rough Stock Bore
• Outside Diameter: 5.84 in
• Set Screw: No Setscrew
• Length Through Bore: 2.91 in
• Material: AISI 1045
• Coupling Type: Gear
• Insert Style: Unbored
• Hub Type: Rigid with Center
• Flange Diameter: 8.38 in
• Torque: 56700 in lb
• Hub Diameter: 5.84 in
• Coupling Size: 2.5, 2 1/2
• Weight: 28.0 LB
• EAN or UPC: 697904001921
