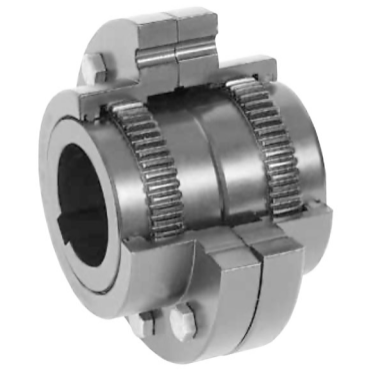

Lovejoy F2.5ESLEEVE F2.5E SLEEVE | Sier-Bath Coupling Sleeve

Product Description

The Lovejoy F2.5E SLEEVE is designed for efficient coupling and is made from high-strength materials. This sleeve features a one-piece construction that is suitable for use in various applications. It is compatible with standard bolts and ensures secure connections between driving and driven components.

• Smooth, one-piece alloy steel sleeve
• Heat-treated bolts for added strength
• O-ring seals for effective sealing

Product Highlights

Reliable for applications that require flexibility and stability while managing angular, parallel, and axial misalignment.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: F2.5ESLEEVE

Technical Specifications

• HP @ RPM: 90 hp @ 100 rpm
• Size of Bolts: 5/8 - 18
• Application: Driver and Driven
• Bolt Holes: 6
• Seal Type: O-Ring
• Torque Rating: 56700 in lb
• Material: 1045 Carbon Steel
• Coupling Size: F2.5
• RPM [Max]: 4400 rpm
• Type: Standard Sleeve, Sleeves
• Length: 3.030 inches
• Style: Exposed Bolt Sleeve
• Flange Type: Exposed Bolt
• Bolt Circle Dia.: 7 1/8 inches
• Weight: 12.58 lb
• EAN or UPC: 697904001860
