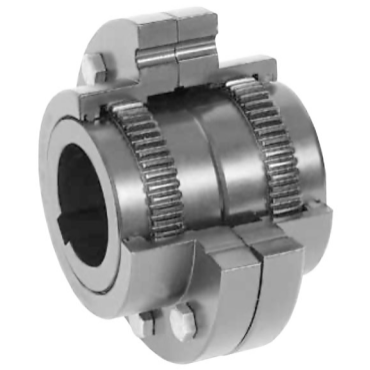

Lovejoy F1X13/8HUB5/16 F Series Gear Coupling Hub

Product Description

The Lovejoy F1X13/8HUB5/16 is part of the F Series Gear Coupling Hub. This product offers a bore diameter of one point three seven five inches and a length through the bore of one point six nine inches.

• Compensates for angular, parallel, and axial misalignment
• Standard twenty-degree pressure angle
• Patented Vari-Crown gear teeth for enhanced durability

Product Highlights

This coupling hub is designed to manage misalignment effectively, ensuring reliability in operation.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: F1X13/8HUB5/16

Technical Specifications

• Insert Style: Bored
• Coupling Size: 1
• Bore Diameter [Max]: 1 5/8 inches
• Torque Rating [Max]: 7600 in lb
• Speed (RPM): 6000
• Outside Diameter: 2.31 inches
• Length Through Bore: 1.69 inches
• Keyway Size: 5/16 x 5/32
• Coupling Type: Gear
• Hub Diameter: 2 5/16 inches
• Material: AISI 1045
• Max RPM: 6000 rpm
• Horsepower at RPM: 12 hp at 100 rpm
• Color: Metallic
• Weight: 2.0 lb
• EAN or UPC: 697904001389
