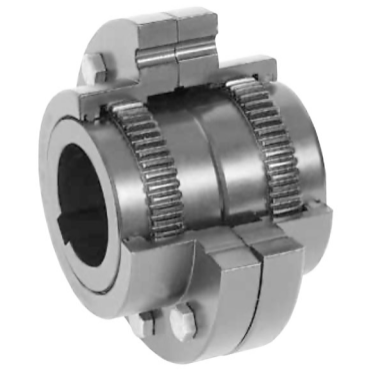

Lovejoy F1X11/8HUB1/4 F Series Gear Coupling Hub

Product Description

The Lovejoy F1X11/8HUB1/4 is a component designed for effective power transmission in mechanical systems. This gear coupling hub compensates for angular, parallel, and axial misalignment, ensuring smooth operation.

• 1.125 inch bore diameter
• 1.69 inch length through bore
• Standard 20 degree pressure angle for enhanced performance

Product Highlights

The hub features crowned gear teeth that provide a larger contact area while reducing stress during misalignment. It is suitable for high-speed applications and minimizes vibration for reliable performance over time.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: F1X11/8HUB1/4

Technical Specifications

• Insert Style: Bored
• Torque Rating [Max]: 7600 in lb
• Length Through Bore: 1.69 inches
• Speed (RPM): 6000
• Coupling Type: Gear
• Keyway Size: 1/4 x 1/8
• Outside Diameter: 2.31 inches
• Material: AISI 1045
• Hub Diameter: 2 5/16 inches
• Maximum RPM: 6000
• Coupling Size: 1
• Maximum Bore Diameter: 1 5/8 inches
• Horsepower at RPM: 12 hp at 100 RPM
• Weight: 1.65 LB
• EAN or UPC: 697904001365
