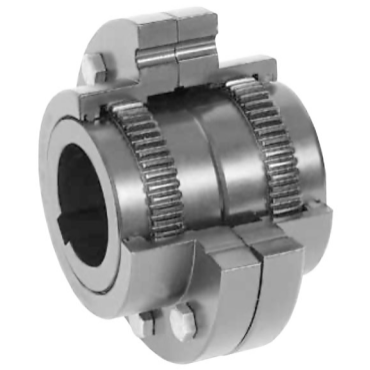

Lovejoy F1SSLEEVE F Series Flex Gear Coupling Sleeve

Product Description

The Lovejoy F1SSLEEVE is a component designed for use with F Series flex gear couplings. It compensates for angular, parallel, and axial misalignment, making it suitable for various applications. This sleeve has a standard pressure angle of twenty degrees which allows for effective operation at higher speeds with less vibration.

• Compensates for angular, parallel, and axial misalignment
• Piloted design for improved stability during operation
• Manufactured with 1045 steel for durability

Product Highlights

This sleeve is ideal for machine designs that need precise alignment and torque handling.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: F1SSLEEVE

Technical Specifications

• Distance Between Shaft Ends: 0.13 in
• Type: Sleeves
• Style: Shrouded Bolt Sleeve
• Bolt Holes: 6
• Seal Type: O-Ring
• Speed (RPM): 6000
• Length: 1.690 in
• Flange Diameter: 4.56 in
• Torque: 7600 in lb
• Application: Driver and Driven
• Material: 1045 Steel
• Length Through Bore: 1.69 in
• Flange Type: Shrouded Bolt
• RPM [Max]: 6000 rpm
• Bolt Circle Dia.: 3 3/4 in
• HP @ RPM: 12 hp @ 100 rpm
• Bore Dia. [Max]: 1.6540 in
• Size of Bolts: 1/4 - 28
• Torque Rating: 7600 in lb
• Weight: 2.3 LB
• EAN or UPC: 697904001426
