Lovejoy F1E SLEEVE | Sier-Bath Coupling Sleeve | F1

Product Description

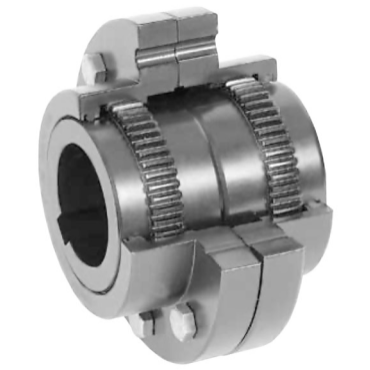

The Lovejoy F1E SLEEVE is a Sier-Bath Coupling Sleeve designed for effective connection in mechanical systems. Constructed from alloy steel, this durable sleeve supports both exposed and shrouded bolt designs. It enhances operational efficiency with heat-treated bolts that resist corrosion and ensure high strength.

• Ideal for high-speed applications
• Compensates for misalignment issues
• Features patented gear teeth for extended lifespan

Product Highlights

This coupling sleeve is built for reliable performance in various applications, including both driver and driven setups. The design allows for larger bore capacity, contributing to its versatility.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 102075161

Technical Specifications

• Length: 1.690 inches
• HP @ RPM: 12 hp @ 100 rpm
• Coupling Size: F1
• Application: Driver and Driven
• Max RPM: 6000 rpm
• Flange Type: Exposed Bolt
• Flange Diameter: 4.56 inches
• Bolt Holes: 6
• Bore Diameter Max: 1.6540 inches
• Material: 1045 Steel
• Seal Type: O-Ring
• Weight: 2.34 lbs
• EAN or UPC: 697904001419
