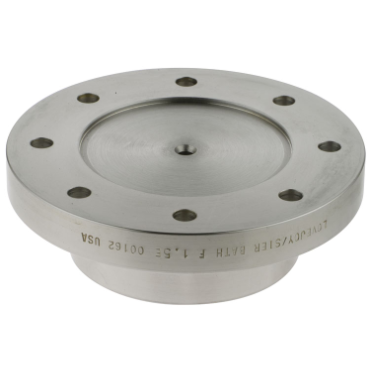

Lovejoy F1.5HUB RSB | F Series Gear Coupling Hub | 1.5 Coupling Size | 18900 in lb Torque Rating

Product Description

The Lovejoy F1.5HUBRSB is a gear coupling hub designed for efficient power transmission in mechanical systems. It features a robust and smooth one-piece alloy steel sleeve that supports high strength and durability. This coupling hub is ideal for various industrial applications requiring precise alignment and torque transmission.

• 1 1/2 coupling size
• Rough stock bore for ease of installation
• Maximum bore diameter of 2 1/8 inches

Product Highlights

This gear coupling hub is suitable for high RPM applications with up to 5500 RPM capability while ensuring performance through patented Vari-Crown gear teeth.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: F1.5HUBRSB

Technical Specifications

• Speed (RPM): 5500
• Torque Rating [Max]: 18900 in lb
• Outside Diameter: 3 in
• Overall Length: 4 in
• Coupling Type: Gear
• Insert Style: Unbored
• Length Through Bore: 1.94 in
• Material: AISI 1045
• Bore Type: Rough Stock Bore
• Input Bore Range: 11/16 to 2 1/8
• Flange Diameter: 6 in
• Weight: 4.13 LB
• EAN or UPC: 697904001488
