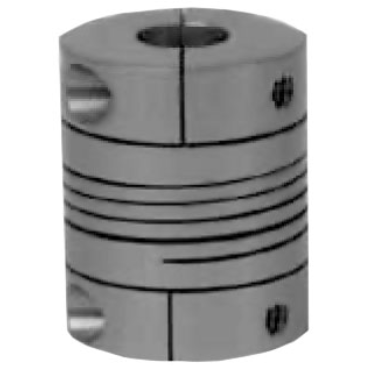

Lovejoy EC112BEAM3/8X1/2 Aluminum Single Beam Clamp Style Couplings

Product Description

The Lovejoy EC112BEAM3/8X1/2 is an aluminum single beam clamp style coupling designed for high temperature applications. This coupling provides zero backlash and is engineered to handle low reactionary loads on bearings.

• Material: Anodized aluminum
• Bore A: three eighths inches
• Bore B: one half inches

Product Highlights

This coupling is lightweight and constructed entirely from metal. It is easy to install and can accommodate five degrees of angular misalignment.

Product Information

Standard Information

• Type: Single Beam Coupling
• Style: Clamp Screw

Technical Specifications

• Bore Dia. [Min]: 0.3150 inches
• Bore Dia. [Max]: 0.4720 inches
• Length: 1.102 inches
• Outside Dia.: 1.102 inches
• Weight: 0.007 pounds
• Torque: 17 in lb
• RPM: 10000
• Temperature Range [Max]: 200 degrees Fahrenheit
• Torsional Stiffness: 409.3 inch pounds/radian
• Length Through Bore: 0.276 inches
• EAN or UPC: 685144566546
