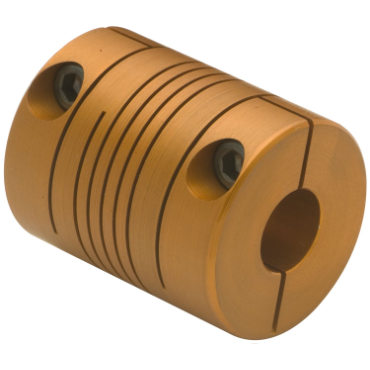

Lovejoy EC100BEAM6MMX6MM Aluminum Single Beam Clamp Style Couplings

Product Description

The Lovejoy EC100BEAM6MM is an Aluminum Single Beam Clamp Style Coupling designed for high temperature applications. This coupling boasts a zero backlash feature, making it suitable for precision motion control while providing low reactionary loads on bearings. Its construction in anodized aluminum ensures good chemical resistance and durability.

• Zero backlash
• Maximum speed of 10,000 rpm
• Lightweight and all-metal design

Product Highlights

This coupling allows for a 5-degree angular misalignment and can accommodate a parallel shaft centerline offset of 0.010 inches. It can also manage axial motion of ±0.010 inches, making it versatile for different setups.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: EC100BEAM6MM

Technical Specifications

• Torque: 11 in lb
• Bore A: 6 mm
• Bore B: 6 mm
• Outside Diameter: 25 mm
• Length: 32 mm
• Weight: 0.005 lb
• Maximum Speed: 10,000 rpm
• Maximum Temperature: 200 °F
• Material: Anodized Aluminum
• Type: Single Beam Coupling
• Style: Clamp Screw
