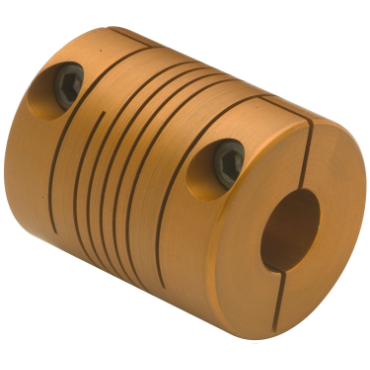

Lovejoy EC100BEAM3/8X3/8 | Aluminum Single Beam Clamp Style Couplings

LOVEJOY
Brand: LOVEJOY
SKU: EC100BEAM3/8X3/8
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Lovejoy EC100BEAM3/8X3/8 is designed for high-temperature applications. It features a single beam clamp style and is constructed from anodized aluminum. This coupling type supports a bore size of three-eighths inches for both A and B sides, making it suitable for various coupling applications.

  • Zero backlash operation
  • Lightweight and all-metal design
  • 5-degree angular misalignment capability

Product Highlights

This coupling provides ease of installation and excellent performance in high-temperature settings. It also delivers low reactionary loads on bearings and ensures no wear parts for long-lasting use.

Product Information

Standard Information

  • Brand: Lovejoy
  • Type: Single Beam Coupling
Technical Specifications
Overall Length
1.25 inches
Bore Type
Round Bore
Material
Anodized Aluminum
Maximum RPM
10000 rpm
Torque Rating
8.5 inch lb
Torsional Stiffness
286.5 inch pounds/radian
Temperature Range Maximum
200 °F
Bore Diameter Minimum
0.2360 inches
Bore Diameter Maximum
0.3940 inches
Length Through Bore
0.276 inches
Angular Misalignment
5 degrees
Parallel Misalignment
0.01 inches
Weight
0.005 lb
EAN or UPC
685144566447
