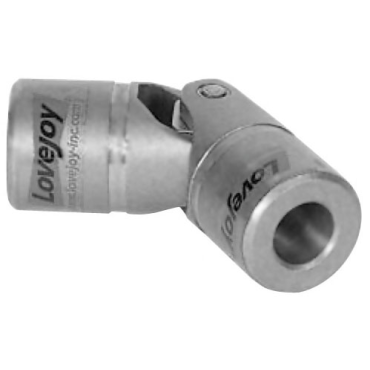

Lovejoy D8BSS5/8X5/8FB Standard Pin & Block Style Universal Joint

Product Description

The Lovejoy D8BSS5/8X5/8FB is a standard pin and block style universal joint built for strength and flexibility. This component supports full movement while handling high horsepower loads.

• Bore diameter is five eighths inches.
• Compatible with high-speed applications, rated for up to 1750 RPM.
• Maximum operating angle of twenty-five degrees.

Product Highlights

This universal joint is designed for high performance in various applications. Its robust yoke shape allows free movement while withstanding heavy loads.

Product Information

Standard Information

• Part Number: D8BSS5/8X5/8FB
• Brand: Lovejoy

Technical Specifications

• Bore Depth: 1.06 in
• Color: Metallic
• Bore Type: Finished
• Style: Single
• Set Screw Size: 1/4-20
• RPM [Max]: 1750 RPM
• Coupling Type: Universal Joints - D Type
• Overall Length: 3.75 in
• Material: 303 Stainless Steel
• Bore Dia. [Max]: 3/4 in
• Torque Rating [Max]: 3480 in lb
• Max. Operating Angle: 25 °
• Outside Dia.: 1.25 in
• Weight: 0.887 lb
