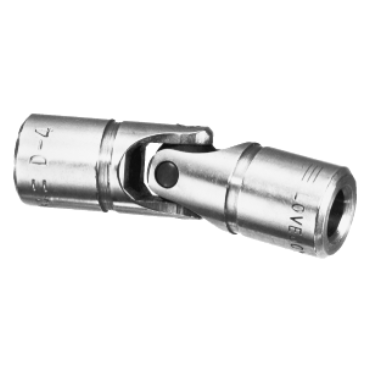

Lovejoy D8B5/8X5/8FB D Type Bored Universal Joint

Product Description

Lovejoy D8B5/8X5/8FB is a standard industrial-type universal joint designed with a pin and block structure. It features a robust design that allows for extensive movement while maintaining high strength. This part is suitable for use in various applications, where efficient power transmission is crucial.

• 5/8 inch bore diameter.
• Accommodates high horsepower capacity.
• Maximum speed of 1,750 RPM.

Product Highlights

The universal joint supports high-speed operations and maximizes torque efficiency.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: D8B5/8X5/8FB

Technical Specifications

• Outside Diameter: 1.25 inches
• Bore Depth: 1.06 inches
• Overall Length: 3.75 inches
• Torque Rating: 5220 inch lb
• Max Operating Angle: 25 degrees
• Weight: 0.898 lb
• Material: Steel
• Temperature Range Max: 212 degrees F
• Temperature Range Min: -30 degrees F
• Set Screw Size: 1/4-20
• Bore Type: Finished
• Style: Single
• Bore Diameter Max: 3/4 inches
