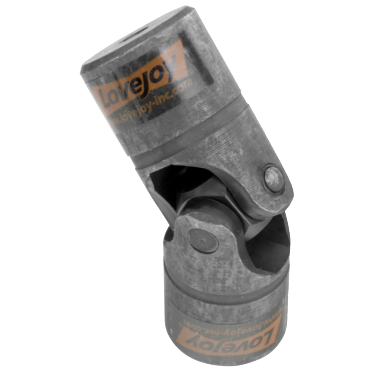

Lovejoy D7SOLID D Type Solid Universal Joint

Product Description

The Lovejoy D7SOLID is a D Type Solid Universal Joint designed for industrial applications. This standard universal joint features a pin and block design, suitable for various coupling needs. It is built to offer high performance and durability in demanding environments.

• Yoke shape allows for high strength and full movement
• Handles high horsepower at elevated speeds
• Maximum operational speed of 1,750 rpm

Product Highlights

This D Type Solid Universal Joint is ideal for heavy-duty applications. It maintains performance under high torque and speed conditions.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: D7SOLID

Technical Specifications

• Bore Dia. [Max]: 0.8800 in
• Outside Dia.: 1.12 in
• Coupling Type: Universal Joints - D Type
• Overall Length: 3.5 in
• Coupling Size: D7
• Insert Style: Unbored
• Temperature Range [Min]: -30 °F
• Style: Single
• Bore Depth: 1 in
• RPM [Max]: 1750 rpm
• Max. Operating Angle: 25 °
• Torque Rating [Max]: 2880 in lb
• Length to Centerline: 1 3/4 in
• Bore Type: Solid
• Temperature Range [Max]: 212 °F
• Nominal Size: 0.56 in
• Material: Steel
• Weight: 0.837 LB
• EAN or UPC: 685144158413
