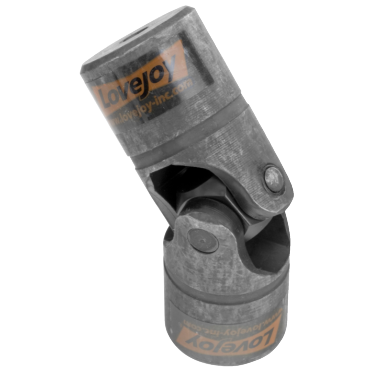

Lovejoy D6SOLID D Type Solid Universal Joint

Product Description

The Lovejoy D6SOLID is a D Type solid universal joint designed for robust industrial applications. This standard pin and block style joint allows for full movement while accommodating higher speeds and power levels. Its strong yoke shape ensures durability and performance.

• Solid Type Bore for enhanced strength
• Designed for high horsepower and speed
• Maximum operational speed of 1,750 rpm

Product Highlights

This universal joint features boot retaining grooves that provide maximum stability during operation.

Product Information

Standard Information

• Part Number: 102131709
• Brand: Lovejoy

Technical Specifications

• Coupling Type: Universal Joints - D Type
• Style: Single
• Nominal Size: 1/2 in
• Bore Type: Solid
• Bore Depth: 1 in
• Size Code: D6
• Bore Diameter [Max]: 3/4 in
• Temperature Range [Max]: 212 °F
• Length to Centerline: 1.68 in
• Torque Rating [Max]: 1560 in lb
• RPM [Max]: 1750 rpm
• Insert Style: Unbored
• Overall Length: 3.38 in
• Temperature Range [Min]: -30 °F
• Max Operating Angle: 25 °
• Outside Diameter: 1 in
• Material: Steel
• Weight: 0.634 lb
• EAN or UPC: 685144158093
