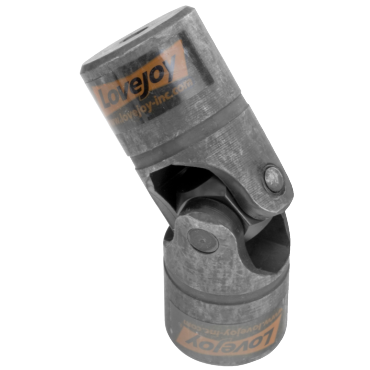

Lovejoy D4SOLID D Type Solid Universal Joint

Product Description

The Lovejoy D4SOLID is a D Type Solid Universal Joint designed for industrial applications. This joint features a pin and block design that provides reliability and strength in various mechanical setups.

• Bore type: Solid
• Maximum RPM: 1,750
• Overall length: 2.68 inches

Product Highlights

This universal joint supports high horsepower and accommodates full joint movement.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: D4SOLID

Technical Specifications

• Bore Diameter (Max): 0.6200 inches
• Coupling Size: D4
• RPM (Max): 1,750
• Style: Single
• Temperature Range (Min): -30 °F
• Bore Type: Solid
• Overall Length: 2.68 inches
• Outside Diameter: 0.75 inches
• Length to Centerline: 1.34 inches
• Material: Steel
• Max Operating Angle: 25 °
• Nominal Size: 0.38 inches
• Torque Rating (Max): 768 in lb
• Bore Depth: 0.88 inches
• Temperature Range (Max): 212 °F
• Weight: 0.281 lb
• EAN or UPC: 685144157447
