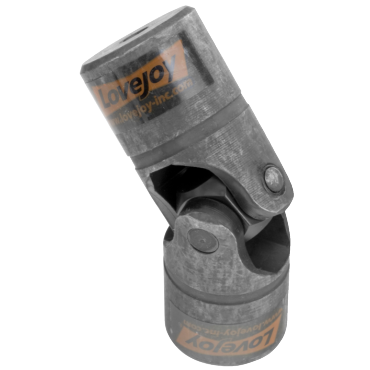

Lovejoy D2SOLID D Type Solid Universal Joint

Product Description

The Lovejoy D2SOLID represents a robust D Type Solid Universal Joint designed for industrial applications. With a pin and block configuration, it ensures reliable performance under demanding conditions. This product features a yoke shape that provides high strength while allowing the joint to move freely. It supports high horsepower capacities, making it suitable for various machinery and manufacturing applications.

• Solid type bore design
• Available with a maximum speed of 1,750 rpm
• Boot retaining grooves for enhanced durability

Product Highlights

Ideal for high-speed applications where reliability is critical.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: D2SOLID

Technical Specifications

• Outside Diameter: 0.5 in
• Bore Diameter (Max): 0.3800 in
• Bore Depth: 0.62 in
• Torque Rating (Max): 378 in lb
• Nominal Size: 1/4 in
• Overall Length: 2 in
• Length to Centerline: 1 in
• Material: Steel
• Weight: 0.092 lb
• Max Operating Angle: 25 °
• Temperature Range (Min): -30 °F
• Temperature Range (Max): 212 °F
• Coupling Type: Universal Joints - D Type
• Insert Style: Unbored
• Size Code: D2
• RPM (Max): 1,750 rpm
• EAN or UPC: 685144156747
