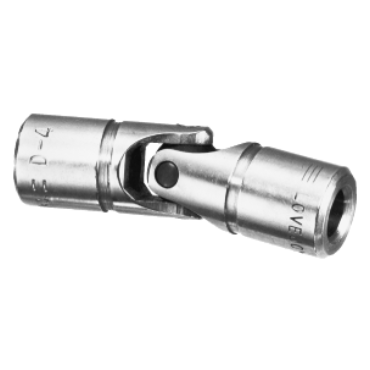

Lovejoy D14B11/2X11/2FB D Type Bored Universal Joint

Product Description

The Lovejoy D14B11/2X11/2FB is a D Type bored universal joint designed for industrial applications. It features a pin and block design that ensures durability and a high level of performance.

• High strength yoke shape allows for free movement
• Can handle high horsepower at high speeds
• Maximum operating angle of twenty-five degrees

Product Highlights

This product is suitable for various applications where robust connectivity is required between shafts, ensuring efficient torque transmission.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: D14B11/2X11/2FB

Technical Specifications

• Style: Single
• Overall Length: nine point zero six inches
• Set Screw: Yes
• Nominal Size: one and a half inches
• Material: Stainless Steel, Steel
• Keyway Size: three eighths x three sixteenths inches
• Outside Diameter: three inches
• Coupling Type: Universal Joints - D Type
• Coupling Size: D14B
• Bore Type: Finished
• Max. Operating Angle: twenty-five degrees
• Torque Rating [Max]: sixty-five thousand four hundred inch pounds
• RPM [Max]: seventeen hundred fifty rpm
• Weight: twelve point two nine pounds
• EAN or UPC: 685144451170
