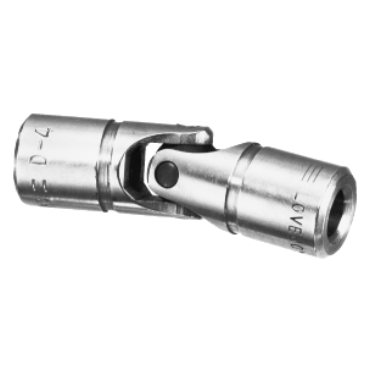

Lovejoy D13B11/4X11/4FB D Type Bored Universal Joint

Product Description

The Lovejoy D13B11/4X11/4FB is a standard industrial universal joint designed with a pin and block structure. This part is recognized for its robust design, making it suitable for high-performance applications.

• 1 1/4 inch bore diameter
• Accommodates high horsepower at high speeds
• Maximum operating angle of 25 degrees

Product Highlights

This joint offers durability and reliability in demanding conditions, ensuring full range operation while maintaining strength.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: D13B11/4X11/4FB

Technical Specifications

• Keyway: 1/4 x 1/8
• Style: Single
• Temperature Range [Min]: -30 °F
• Bore Type: Finished
• Torque Rating [Max]: 33120 in lb
• Set Screw: Yes
• Nominal Size: 1 1/4 in
• Size Code: D13
• Insert Style: Bored
• Set Screw Size: 3/8-16
• Max. Operating Angle: 25 °
• Bore Depth: 2 in
• Coupling Size: D13B
• Material: Steel
• Length to Centerline: 3 1/2 in
• RPM [Max]: 1750 rpm
• Overall Length: 7 in
• Coupling Type: Universal Joints - D Type
• Keyway Size: 1/4 x 1/8
• Bore Dia. [Max]: 1 1/2 in
• Outside Dia.: 2.5 in
• Temperature Range [Max]: 212 °F
• Weight: 6.725 LB
• EAN or UPC: 685144443854
