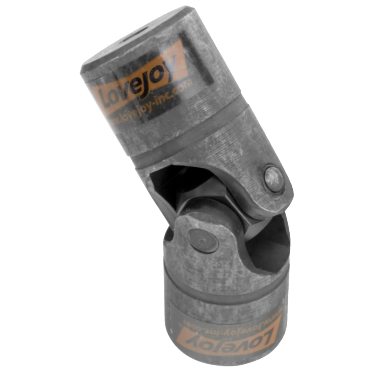

Lovejoy D12SOLID D Type Solid Universal Joint

Product Description

The Lovejoy D12SOLID is a D Type Solid Universal Joint designed for high performance and reliability. It features a standard industrial-type design with a pin and block configuration, making it suitable for various applications in the mechanical sector.

• Meets high strength requirements
• Accommodates high horsepower at high speeds
• Every joint supports a maximum speed of 1,750 rpm

Product Highlights

This universal joint is ideal for machines that require robust connections and flexibility in operation.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: D12SOLID

Technical Specifications

• Size Code: D12
• Bore Type: Solid
• Length to Centerline: 2.72 inches
• Outside Diameter: 2 inches
• Maximum RPM: 1750 rpm
• Maximum Bore Diameter: 1.5 inches
• Torque Rating: 15600 in lb
• Temperature Range: -30 °F to 212 °F
• Insert Style: Unbored
• Material: Steel
• Overall Length: 5.44 inches
• Bore Depth: 1.5 inches
• Nominal Size: 1 inch
• Maximum Operating Angle: 25 °
• Coupling Size: D12
• Coupling Type: Universal Joints - D Type
• Weight: 3.85 lb
• UPC: 685144160195
