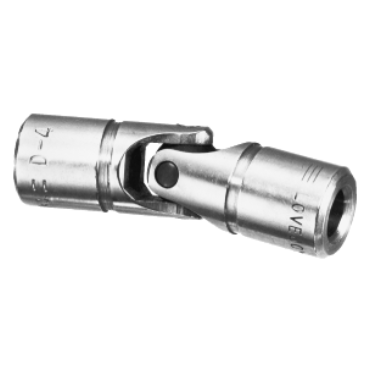

Lovejoy D12B1X1FB D Type Bored Universal Joint

Product Description

The Lovejoy D12B1X1FB is a D Type bored universal joint designed for industrial applications. This joint features a pin and block design that enhances its durability and performance in demanding environments.

• Yoke design provides high strength with full joint movement
• High horsepower capacity suitable for fast applications
• Maximum operating angle of twenty-five degrees

Product Highlights

This universal joint is built to accommodate a maximum speed of one thousand seven hundred fifty revolutions per minute, ensuring effectiveness in various mechanical systems.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: D12B1X1FB

Technical Specifications

• Overall Length: 5.44 inches
• Outside Diameter: 2 inches
• Bore Diameter: 1 inch
• Bore Depth: 1.5 inches
• Max. Operating Angle: 25 degrees
• Maximum RPM: 1750 rpm
• Set Screw Size: 5/16-18
• Material: Steel
• Torque Rating: 15600 in lb
