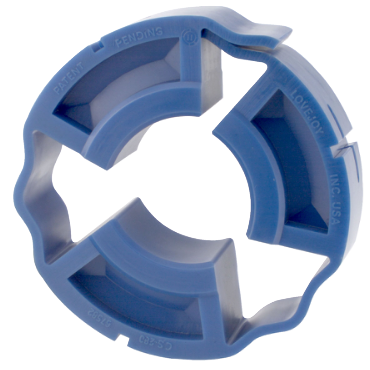

Lovejoy CS285SPIDER6PIN Jaw In-Shear Type Spider & Ring

Product Description

The Lovejoy CS285SPIDER6PIN is a jaw in-shear type spider and ring designed for specific coupling applications. This product features a standard hub design that allows it to accommodate angular misalignment while ensuring reliable performance. Its quick-change feature enables easy spider replacement without the need to move either hub.

• Designed for 285 size coupling
• No tools required for element replacement
• Corrosion-resistant and durable

Product Highlights

Offers a reliable solution for heavy-duty applications in harsh environments. Ideal for replacing old spider elements efficiently.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: CS285SPIDER6PIN

Technical Specifications

• Overall Length: 10.690 in
• Torque: 18,760.0 in lb
• Hardness: 50D Shore
• Coupling Type: Jaw In-Shear
• Temperature Range (Max): 200 °F
• Color: Blue
• Outside Diameter: 8 1/2 in
• Max RPM: 2,300 rpm
• Insert Style: Wrap Type
• HP @ RPM: 29.77 hp @ 100 rpm
• Torque Rating (Max): 18,760.0 in lb
• Material: Urethane Spider
• No. of Legs: N/A
• Coupling Size: CS285
• Weight: 4.05 LB
• EAN or UPC: 685144717146
