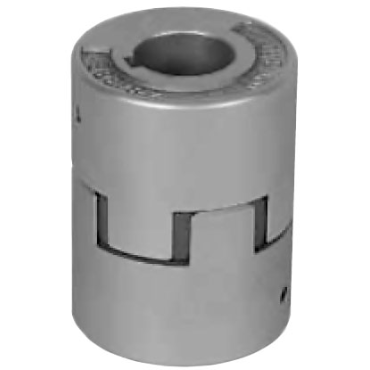

Lovejoy CJ75/90BX50MM RSB | Curved Jaw Type Coupling Hub

Product Description

The Lovejoy CJ75/90BX50MM RSB is a durable curved jaw type coupling hub designed for various applications.

• Size CJ75/90 Curved Jaw Coupling Hub
• Bore diameter of 50 millimeters
• Resistant to oil, dirt, and grease

Product Highlights

This coupling hub is ideal for pumps, gearboxes, compressors, blowers, mixers, conveyors, and generator sets.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: CJ75/90BX50MM RSB

Technical Specifications

• Coupling Size: CJ75/90
• Material: Cast Iron
• Outside Diameter: 160.02 millimeters
• Coupling Type: Curved Jaw Couplings
• Bore Diameter [Min]: 50.0000 millimeters
• Bore Diameter [Max]: 89.0000 millimeters
• Torque: 1279 N-m
• Bore Type: Rough Stock Bore
• Max RPM: 3550 rpm
• Input Bore Range: 50 millimeters to 89 millimeters
• Insert Style: Unbored
• Overall Length: 119.89 millimeters
• Length Through Bore: 3.35 inches
• Hub Diameter: 5 5/16 inches
• Weight: 20.0 pounds
• EAN or UPC: 685144620620
