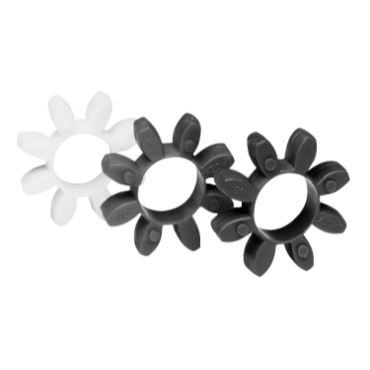

Lovejoy CJ42/55SOX98RED | Curved Jaw Coupling Spider | 41.03

Product Description

The Lovejoy CJ42/55SOX98RED is a curved jaw coupling spider designed for use in different applications like pumps, gearboxes, and compressors. This coupling insert is made from urethane material, ensuring durability and flexibility in demanding environments.

• Insert for size 42/55 jaw coupling
• Constructed from polyurethane
• 98 durometer hardness

Product Highlights

This product features no lubrication required and no metal-to-metal contact, which enhances its lifespan and reduces maintenance needs.

Product Information

Standard Information

• Brand: Lovejoy
• Part #: 101086795

Technical Specifications

• HP @ RPM: 116.27 hp @ 1800 rpm
• No. of Legs: 8
• Coupling Size: 42/55, 42
• Material: Polyurethane, Urethane Spider
• Coupling Type: Jaw
• RPM [Max]: 6000 rpm
• Temperature Range [Min]: -40 °F
• Temperature Range [Max]: 212 °F
• Color: Red
• Hardness: 98 Shore
• Outside Diameter: 95 mm
• Torque: 450 N-m
• Torque Rating [Max]: 8142 in lb
• Insert Style: Open Center
• Weight: 0.25 lb
• EAN or UPC: 685144620729
