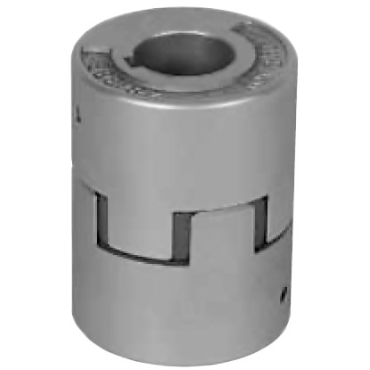

Lovejoy CJ38/45B5/8HUB RSB | Curved Jaw Type Coupling Hub

Product Description

The Lovejoy CJ38/45B5/8HUB RSB is a curved jaw type coupling hub designed for various applications. It is suitable for use with pumps, gearboxes, compressors, blowers, mixers, conveyors, and generator sets. The coupling operates without lubrication and prevents metal-to-metal contact, ensuring performance even if the elastomer fails.

• Size: CJ38/45 Curved Jaw Coupling Hub
• Bore Diameter: 5/8 inches
• Hub Diameter: 2.6 inches

Product Highlights

This coupling hub features easy installation, resistance to oil, dirt, sand, moisture, and grease. It also provides a torsionally softer jaw design and can handle an angular misalignment capability of up to 1.5 degrees.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: CJ38/45B5/8HUB RSB

Technical Specifications

• Bore Diameter [Min]: 5/8 inches
• Bore Diameter [Max]: 1 3/4 inches
• Hub Diameter: 2.6 inches
• Torque: 1680 in lb
• Length Through Bore: 1.77 inches
• Coupling Size: CJ38/45, 38
• Insert Style: Bored
• Outside Diameter: 3.15 inches
• RPM [Max]: 7100 rpm
• Input Bore Range: 5/8 to 1 3/4 inches
• Color: Metallic
• Material: Sintered Iron, Powder Metal
• Coupling Type: Curved Jaw Coupling Hubs
• Overall Length: 4.49 inches
• Weight: 2.76 lb
• EAN or UPC: 685144620200
