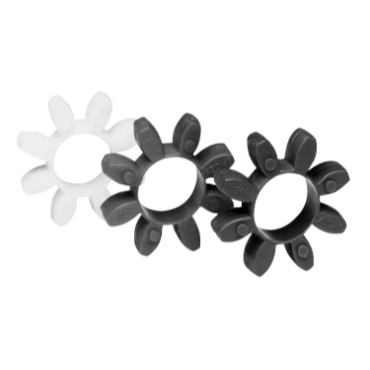

Lovejoy CJ28/38SOX92YEL Curved Jaw Coupling Spider

Product Description

The Lovejoy CJ28/38SOX92YEL is a curved jaw coupling spider designed for applications in various machinery. Its urethane construction makes it suitable for pumps, gearboxes, compressors, blowers, mixers, conveyors, and generator sets. This coupling spider minimizes metal to metal contact, eliminating the need for lubrication.

• Insert for size 28/38 jaw coupling
• Resists oil, dirt, sand, moisture, and grease
• Easy installation

Product Highlights

Suitable for use in various industrial settings where reliable performance is needed.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 101086760

Technical Specifications

• Outside Diameter: 65 mm
• Coupling Size: 28/38, 28
• Hardness: 92 Shore
• Max Temperature Range: 212 °F
• Coupling Type: Jaw
• HP @ RPM: 24 hp @ 1800 rpm
• Insert Style: Open Center
• Max Torque Rating: 1682 in lb
• Min Temperature Range: -40 °F
• Material: Polyurethane, Urethane Spider
• Torque: 95 N-m
• Max RPM: 8500 rpm
• Color: Yellow, White
• Number of Legs: 8
• Weight: 0.06 lb
• EAN or UPC: 685144614490
