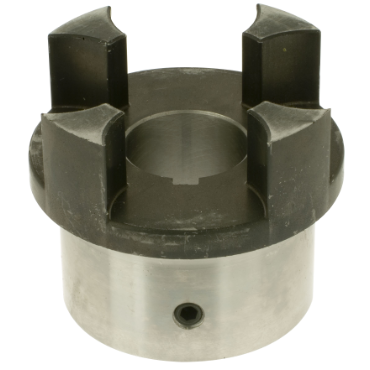

Lovejoy CJ28/38B1 1/8HU1/4 | Curved Jaw Type Coupling Hub

Product Description

The Lovejoy CJ28/38B1 1/8HU1/4 is a curved jaw type coupling hub designed for various industrial applications. This coupling hub features a bore size of one and one-eighth inches and a keyway size of one-fourth by one-eighth inches. It is ideal for connecting pumps, gearboxes, compressors, blowers, mixers, conveyors, and generator sets.

• 1 1/8 inch bore size
• 1/4 x 1/8 inch keyway
• Resists oil and moisture

Product Highlights

This coupling hub requires no lubrication and features no metal-to-metal contact, allowing for reliable operation even if the elastomer fails. It is easy to install and designed to withstand harsh conditions like dirt and grease.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: CJ28/38B1 1/8HU1/4

Technical Specifications

• Hub Diameter: 1.89 inches
• Bore Diameter: 1.125 inches
• Overall Length: 3.54 inches
• Maximum RPM: 8500 rpm
• Insert Style: Bored
• Material: Powdered Metal
• Weight: 1.67 lb
• Keyway Size: 1/4 x 1/8
• Torque: 840 in lb
• Coupling Type: Curved Jaw Coupling Hubs
