Lovejoy CJ24A5/8HUB3/16KW | CJ Series Reborable Jaw Coupling Hub

Product Description

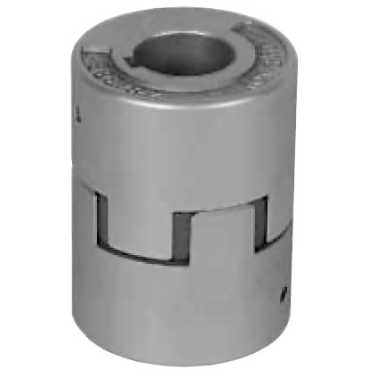

The Lovejoy CJ24A5/8HUB3/16KW is a CJ Series Reborable Jaw Coupling Hub. This coupling hub features a size 24 with a bore diameter of five eighths inches. It is made from durable powder metal material.

• Designed to resist oil, dirt, sand, moisture, and grease
• Easy to install with no lubrication required
• Capable of handling angular misalignment up to 1.5 degrees

Product Highlights

This coupling hub provides efficient power transmission without metal-to-metal contact. Its torsionally softer jaw design ensures that the coupling continues to perform even if the elastomer fails.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: CJ24A5/8HUB3/16KW

Technical Specifications

• Overall Length: 3.07 inches
• Bore Diameter Max: 0.9500 inches
• Bore Diameter Min: 0.4700 inches
• Torque Max: 620 in lb
• Torque Min: 310 in lb
• Temperature Range Max: 212 °F
• Temperature Range Min: -40 °F
• Spider Thickness: 0.55 inches
• RPM Max: 10600 rpm
• Weight: 0.68 lb
• Material: Powder Metal
• Coupling Type: Jaw
• Keyway Size: 3/16 x 3/32
• Hub Type: A
• Insert Style: Bored
• Spider Inside Diameter: 1.06 inches
• Spider Outside Diameter: 2.16 inches
