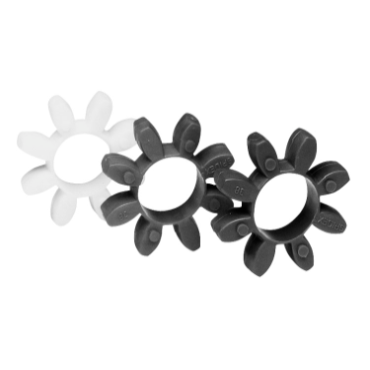

Lovejoy CJ24/32SOX98RED Curved Jaw Coupling Spider

Product Description

The Lovejoy CJ24/32SOX98RED Curved Jaw Coupling Spider is essential for connecting different components in various applications. This coupling spider is designed for the size 24/32 coupling and features a urethane material with a hardness of 98 durometer.

• Fits Size 24/32 Jaw Couplings
• No lubrication required
• Resistant to oil, dirt, and moisture

Product Highlights

This coupling spider is easy to install and suitable for pumps, gearboxes, compressors, blowers, mixers, conveyors, and generator sets.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 101086749
• Availability: Ready to Ship

Technical Specifications

• Coupling Size: 24/32
• Outside Diameter: 55 mm
• Hardness: 98 Shore
• HP at RPM: 15.16 hp @ 1800 rpm
• No. of Legs: 8
• Temperature Range (Min): -40 °F
• Temperature Range (Max): 212 °F
• Torque: 60 N-m
• Coupling Type: Jaw
• Material: Polyurethane
• Insert Style: Open Center
• RPM (Max): 10600 rpm
• Torque Rating (Max): 1062 in lb
• Color: Red
• Weight: 0.04 LB
• EAN or UPC: 685144620699
