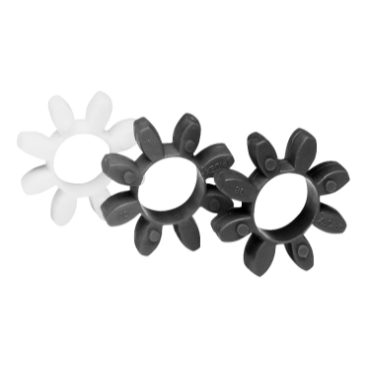

Lovejoy CJ19/24SOX80BLUE | Curved Jaw Coupling Spider

Product Description

The Lovejoy CJ19/24SOX80BLUE is a curved jaw coupling spider designed for size 19/24 jaw couplings. This product is made from urethane and features an 80 durometer hardness. It is used in various applications, including pumps, gearboxes, compressors, blowers, mixers, conveyors, and generator sets.

• Insert for Size 19/24 Jaw Coupling
• Urethane Material
• 80 Durometer Hardness

Product Highlights

This coupling spider requires no lubrication, ensuring a maintenance-free operation. It prevents metal-to-metal contact, which enhances the durability of mechanical systems. Easy to install, it resists oil, dirt, sand, moisture, and grease.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: CJ19/24SOX80BLUE

Technical Specifications

• Temperature Range [Min]: -40 °F
• Material: Polyurethane, Urethane Spider
• Hardness: 80 Shore
• Coupling Type: Jaw
• Torque: 5 N-m
• Temperature Range [Max]: 212 °F
• RPM [Max]: 14000 rpm
• Torque Rating [Max]: 86 in lb
• No. of Legs: 6
• Insert Style: Open Center
• HP @ RPM: 1.23 hp @ 1800 rpm
• Outside Diameter: 40 mm
• Color: Blue
• Coupling Size: 19/24, 19
• Weight: 0.013 LB
• EAN or UPC: 685144614612
