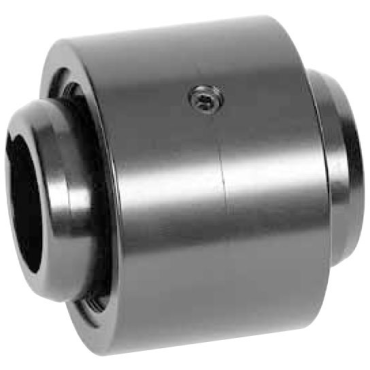

Lovejoy C7/8HUB RSB C Series Gear Coupling Hub

Product Description

The Lovejoy C7/8HUBRSB is a C Series Gear Coupling Hub designed for effective power transmission. This hub features a bore range of seven-sixteenths to one and one-quarter inches, making it versatile for various applications.

• Lightweight and compact design
• Precision-cut gear teeth with a minimum backlash
• Designed for even load distribution

Product Highlights

This gear coupling hub is engineered for strength and durability, ensuring a secure connection for machinery.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: C7/8HUBRSB
• Availability: Ready to ship in 24 hours

Technical Specifications

• Overall Length: 3.13 inches
• Length Through Bore: 1.5 inches
• Bore Diameter Max: 1.25 inches
• Material: 1045 Carbon Steel
• Outside Diameter: 2 inches
• Coupling Type: Gear Coupling Hubs
• Input Bore Range: 7/16 to 1 1/4 inches
• Horsepower @ RPM: 4 hp @ 100 rpm
• Max RPM: 6000 rpm
• Torque Rating Max: 2500 in lb
• Weight: 1.2 lb
• UPC: 697904000290
