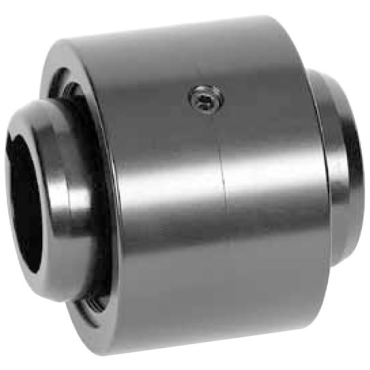

Lovejoy C2X2HUB1/2 C Series Gear Coupling Hub 2 in Bore Diameter

Product Description

The Lovejoy C2X2HUB1/2 is a C Series gear coupling hub designed for high performance in various applications. Its compact design maintains torque capacity while ensuring efficient load distribution.

• Developed for use in a range of industrial settings
• Built from AISI 1045 material for durability
• Precision-cut gear teeth reduce backlash and enhance functionality

Product Highlights

This product offers effective torque transmission and its smaller design promotes longevity and capacity.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: C2X2HUB1/2

Technical Specifications

• Length Through Bore: 4.63 in
• Insert Style: Bored
• Nominal Size: 2 in
• RPM [Max]: 4200 rpm
• Hub Dia.: 3 1/4 in
• Coupling Size: 2
• Material: AISI 1045
• Torque Rating [Max]: 21600 in lb
• HP @ RPM: 32 hp @ 100 rpm
• Color: Metallic
• Coupling Type: Gear
• Outside Dia.: 3.25 in
• Keyway Size: 1/2 x 1/4
• Bore Dia. [Max]: 2.1300 in
• Weight: 4.4 LB
• EAN or UPC: 697904000832
