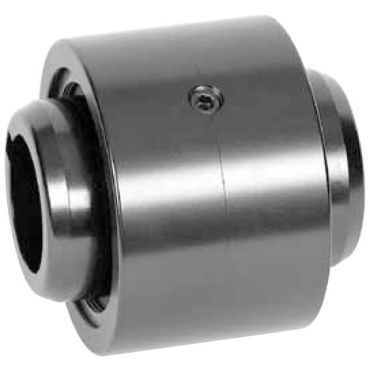

Lovejoy C2HUB21/81/2 C Series Gear Coupling Hub

Product Description

The Lovejoy C2HUB21/81/2 is a C Series Gear Coupling Hub that features a simple design suitable for efficient torque transfer. It is a durable and reliable choice for various industrial applications. This coupling hub is engineered for effective load distribution, ensuring longevity and optimal performance.

• Torque rating of 21600 inch pounds
• Compatible with AISI 1045 material
• Designed for quick installation and maintenance

Product Highlights

This coupling hub provides a lightweight and compact solution without sacrificing torque capacity.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: C2HUB21/81/2

Technical Specifications

• Keyway Size: 1/2 x 1/4
• Color: Metallic
• Coupling Size: 2
• Length Through Bore: 4.63 inches
• Coupling Type: Gear
• Torque Rating [Max]: 21600 inch pounds
• Material: AISI 1045
• Outside Diameter: 3.25 inches
• Nominal Size: 2 1/8 inches
• Hub Diameter: 3 1/4 inches
• Insert Style: Bored
• Bore Diameter [Max]: 2.1300 inches
• Max RPM: 4200
• HP @ RPM: 32 hp @ 100 RPM
• Weight: 4.4 pounds
• EAN or UPC: 697904000849
