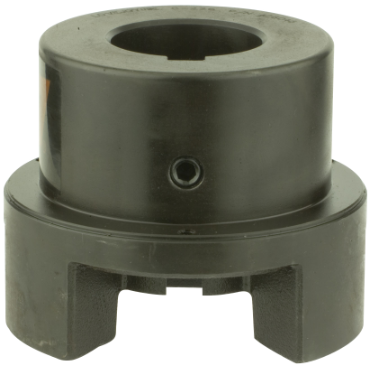

Lovejoy C295X27/8HUB3/4 C Series Reborable Jaw Coupling Hub

Product Description

The Lovejoy C295X27/8HUB3/4 is a C Series Reborable Jaw Coupling Hub designed for industrial applications. This coupling provides a reliable shaft-to-shaft connection suitable for medium to heavy-duty usage.

• Standard shaft-to-shaft connection
• Designed for general industrial use
• Constructed from durable cast iron

Product Highlights

This coupling is ideal for various industrial needs, offering robust performance in power transmission.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: C295X27/8HUB3/4

Technical Specifications

• Hub Diameter: 6 5/16 in
• Spider Inside Diameter: 9.12 in
• Coupling Size: C295
• Keyway Size: 3/4 x 3/8
• Max RPM: 2300 rpm
• Hub Type: 3
• Elastomeric Member: SOX (NBR) Rubber
• Material: Cast Iron
• Rated HP @ 1,200 rpm: 216 hp
• Approximate Bore: 5.63 in
• Rated HP @ 1,800 rpm: 324 hp
• Set Screw Size: 5/8-11
• Length Through Bore: 3.75 in
• Bore Diameter [Min]: 1 1/2 in
• Depth: 9.12 in
• Outside Diameter: 6.25 in
• Overall Length: 5.63 in
• Bore Diameter [Max]: 3 1/2 in
• Torque: 11340 in lb
• Lock Type: Setscrew
• Rated Power @ 100 rpm: 18 hp
• Coupling Type: Jaw
• Number of Jaws: 3
• Weight: 38.0 lb
• UPC: 685144527028
