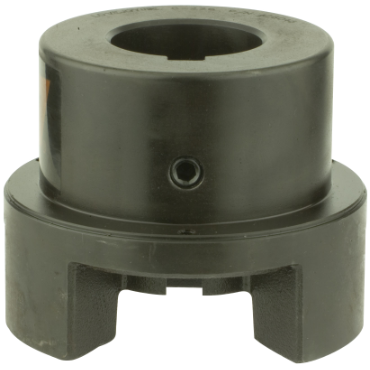

Lovejoy C280X2HUB1/2 C Series Reborable Jaw Coupling Hub

Product Description

The Lovejoy C280X2HUB1/2 is a C Series Reborable Jaw Coupling Hub designed for medium to heavy-duty applications. This coupling provides a standard shaft-to-shaft connection, ensuring reliable performance in various industrial settings. Its robust cast iron construction enhances durability and longevity.

• 2 inches bore diameter
• Compatible with jaw coupling types
• Suitable for high-torque applications

Product Highlights

This coupling is optimized for general industrial-duty applications, making it an essential component for many machinery systems.

Product Information

Standard Information

• Part Number: 102168013
• Brand: Lovejoy

Technical Specifications

• Overall Length: 4.75 inches
• Rated HP @ 1,800 rpm: 216 hp
• Bore Diameter [Max]: 3 inches
• Outside Diameter: 5.5 inches
• Approximate Bore: 4.75 inches
• Lock Type: Setscrew
• Hub Type: 3
• Material: Cast Iron
• Rated HP @ 1,200 rpm: 114 hp
• Max RPM: 3500 rpm
• Length Through Bore: 3.12 inches
• Elastomeric Member: SOX (NBR) Rubber
• Keyway Size: 1/2 x 1/4
• Coupling Size: C280
• Set Screw Size: 1/2-13
• Hub Diameter: 5.5 inches
• Bore Diameter [Min]: 1 1/4 inches
• Torque: 7560 in lb
• Weight: 25.5 lbs
• EAN or UPC: 685144481948
