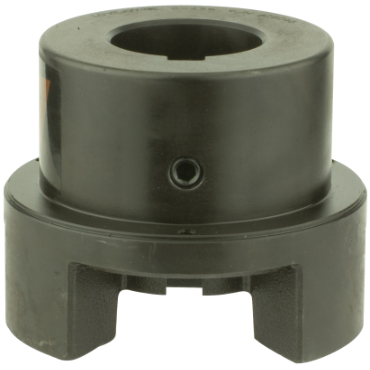

Lovejoy C280X2 3/8HUB5/8 C Series Reborable Jaw Coupling Hub

Product Description

The Lovejoy C280X2 3/8HUB5/8 is a C Series reborable jaw coupling hub. It is designed for medium to heavy-duty industrial applications. This coupling provides a reliable shaft-to-shaft connection, suitable for various operational requirements.

• Standard shaft-to-shaft connection
• Medium-duty and heavy-duty compatibility
• Cast iron construction

Product Highlights

The C280 coupling size and bore diameter are ideal for demanding tasks. It has features that enhance durability and operational efficiency.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: C280X23/8HUB5/8

Technical Specifications

• Set Screw Size: 1/2-13
• RPM [Max]: 3500 rpm
• Length Through Bore: 3.12 in
• Spider Inside Diameter: 7.5 in
• Rated HP @ 1,200 rpm: 114 hp
• Material: Cast Iron
• Depth: 7.5 in
• Approximate Bore: 4.75 in
• Bore Dia. [Max]: 3 in
• Hub Dia.: 5 1/2 in
• Elastomeric Member: SOX (NBR) Rubber
• Coupling Size: C280
• Overall Length: 4.75 in
• Rated HP @ 1,800 rpm: 216 hp
• Bore Dia. [Min]: 1 1/4 in
• Weight: 29.7 LB
• EAN or UPC: 685144440143
