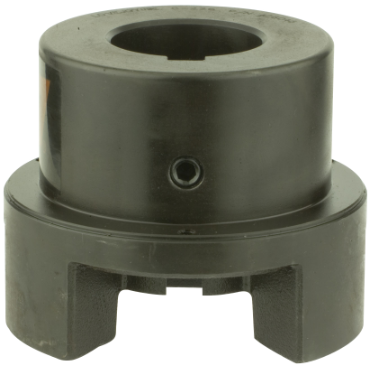

Lovejoy C276X23/8HUB5/8 C Series Reborable Jaw Coupling Hub

Product Description

The Lovejoy C276X23/8HUB5/8 is a C Series Reborable Jaw Coupling Hub designed for medium and heavy-duty applications. This coupling provides a standard shaft-to-shaft connection for various industrial tasks. Commonly made from cast iron, it is durable for general use.

• Coupling size: C276
• Bore diameter: two and three-eighths inches
• Torque capacity: four thousand seven hundred sixteen inch-pounds

Product Highlights

Ideal for applications that require strong performance in industrial settings.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: C276X23/8HUB5/8

Technical Specifications

• Overall Length: four point seventy-five inches
• Depth: six point eighteen inches
• Material: Cast Iron
• Rated HP @ 1,200 rpm: ninety hp
• Rated HP @ 3,600 rpm: two hundred seventy hp
• Max RPM: four thousand two hundred
• Bore Diameter [Min]: seven-eighths inch
• Bore Diameter [Max]: two and seven-eighths inches
• No. of Jaws: three
• Hub Type: three
• Set Screw Size: one-half fourteen
• Weight: seventeen point thirty-nine pounds
