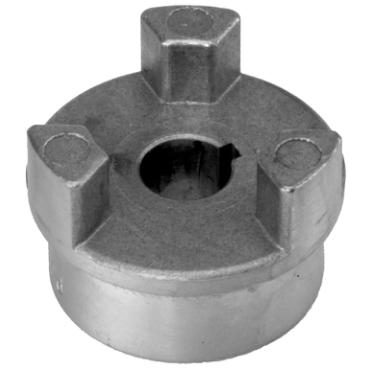

Lovejoy AL150X1HUB1/4 AL Type Finished Bore Jaw Coupling Hub

Product Description

The Lovejoy AL150X1HUB1/4 is an AL Type finished bore jaw coupling hub designed for reliable performance in various industrial applications. This coupling hub features a lightweight aluminum construction that offers excellent resistance to atmospheric conditions, making it suitable for both indoor and outdoor use. Its design accommodates a bore diameter of one inch, ensuring compatibility with various machinery.

• Durable aluminum material
• Maximum RPM of 5000
• Includes two setscrews for secure mounting

Product Highlights

This product provides robust support for rotary drive applications and is perfect for corrosive environments.

Product Information

Standard Information

• Product Name: AL150X1HUB1/4 | AL Type Finished Bore Jaw Coupling Hub
• Brand: Lovejoy

Technical Specifications

• Coupling Type: Jaw
• Bore Dia. [Max]: 1 7/8 in
• Bore Dia. [Min]: 5/8 in
• Rated HP @ 1,200 rpm: 24 hp
• Rated HP @ 1,800 rpm: 35 hp
• Rated HP @ 3,600 rpm: 72 hp
• Torque: 1240 in lb
• Overall Length: 4.5 in
• Outside Dia.: 3.19 in
• Hub Dia.: 3 3/4 in
• Depth: 2.75 in
• Length Through Bore: 1.75 in
• Material: Aluminum
• Lock Type: Setscrew
• Set Screw Size: 5/16-18
• No. of Jaws: 3
• Elastomeric Member: SOX (NBR) Rubber
• Keyway Size: 1/4 x 1/8
• Inch/Metric: Inch
• Approximate Bore: 2.75 in
• Weight: 1.58 LB
