Lovejoy AL150X17/8HUB1/2 | AL Type Finished Bore Jaw Coupling Hub

Product Description

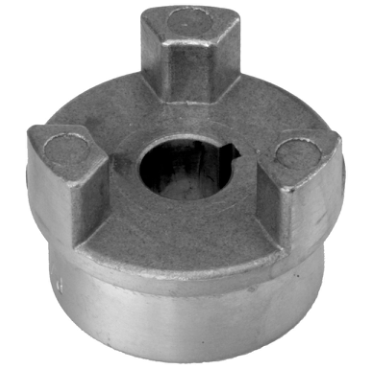

The Lovejoy AL150X17/8HUB1/2 is an aluminum coupling hub for mechanical systems. Designed for durability and efficiency, this coupling is suitable for various applications, particularly in corrosive environments. It features a bore diameter of one and seven-eighths inches and includes two setscrews for secure attachment.

• Lightweight design
• Corrosion-resistant
• Compatible with finished bore and keyway systems

Product Highlights

This coupling hub is engineered for mechanical strength and reliability in demanding settings. It is a practical choice for HVAC, plumbing, and industrial applications.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: AL150X17/8HUB1/2

Technical Specifications

• Max RPM: 5000 rpm
• Rated HP @ 1,200 rpm: 24 hp
• Rated HP @ 1,800 rpm: 35 hp
• Rated HP @ 3,600 rpm: 72 hp
• Bore Diameter (Min): 5/8 in
• Bore Diameter (Max): 1 7/8 in
• Length Through Bore: 1.75 in
• Torque: 1240 in lb
• Weight: 1.36 lb
• Overall Length: 4.5 in
• Hub Diameter: 3 3/4 in
• Material: Aluminum
• Insert Style: Jaw Type
• Number of Jaws: 3
• Lock Type: Setscrew
