Product Description

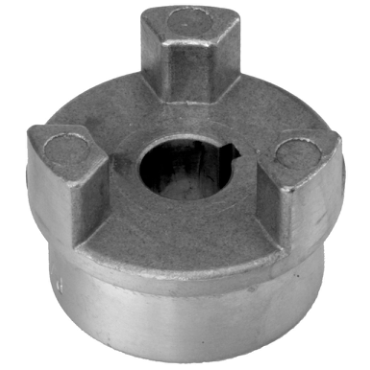

The Lovejoy AL110X3/4HUB3/16 is a jaw coupling hub designed for various mechanical applications. This coupling hub features a 3/4 inch bore diameter and is made from aluminum for lightweight construction. The hub is suitable for environments where resistance to atmospheric conditions is crucial. It can be utilized in applications that require high performance and durability.
- 3/4 inch bore diameter
- Lightweight aluminum construction
- Includes one setscrew
Product Highlights
Ideal for corrosive environments with excellent resistance to the elements.
Product Information
Standard Information
-
Brand: Lovejoy
-
MPN: AL110X3/4HUB3/16
Technical Specifications
-
Color: Silver
-
Depth: 2.56 inches
-
Torque: 792 in lb
-
Weight: 1.15 lbs
-
Hub Diameter: 3 5/16 inches
-
Hub Type: 1
-
Material: Aluminum
-
Bore Type: Finished Bore and Keyway
-
Lock Type: Setscrew
-
Max RPM: 5000 rpm
-
Keyway Size: 3/16 x 3/32
-
No. of Jaws: 3
-
Outside Diameter: 3.31 inches
-
Coupling Size: AL110
-
Coupling Type: Jaw
-
Bore Diameter [Max]: 1 5/8 inches
-
Bore Diameter [Min]: 5/8 inches
-
Length Through Bore: 1.69 inches
-
Overall Length: 4.25 inches
