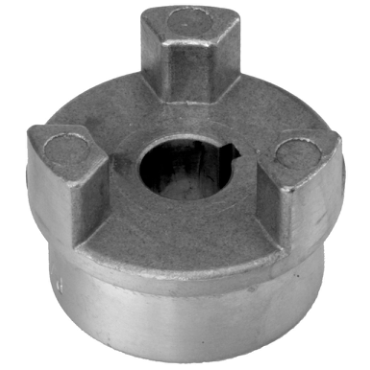

Lovejoy AL100X1HUB1/4 AL Type Finished Bore Jaw Coupling Hub

Product Description

The Lovejoy AL100X1HUB1/4 is a jaw coupling hub designed for efficient power transmission. This coupling hub features a finished bore and keyway for secure installation. Constructed from aluminum, it offers a lightweight solution that resists corrosion, making it suitable for various environments.

• Lightweight aluminum construction
• Resistant to atmospheric conditions
• Compatible with jaw coupling applications

Product Highlights

Lightweight and durable, the AL100X1HUB1/4 facilitates easy assembly and reliable performance. This coupling hub is ideal for connecting shafts in motor and gear applications.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: AL100X1HUB1/4

Technical Specifications

• Torque: 417 in lb
• Rated HP @ 1,200 rpm: 7.92 hp
• Rated HP @ 1,800 rpm: 11.9 hp
• Rated HP @ 3,600 rpm: 23.76 hp
• Max RPM: 7000 rpm
• Overall Length: 3.5 in
• Outside Diameter: 2.41 in
• Length Through Bore: 1.37 in
• Bore Diameter (Max): 1 3/8 in
• Bore Diameter (Min): 1/2 in
• No. of Jaws: 3
• Set Screw Size: 5/16-18
• Insert Style: Jaw Type
• Material: Aluminum
• Color: Silver
