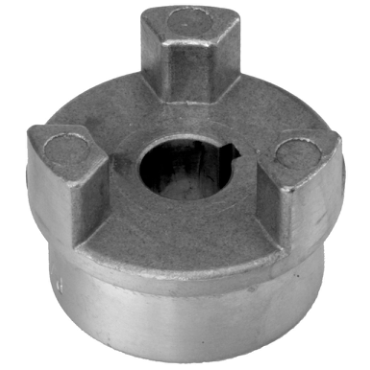

Lovejoy AL100X1 1/8HUB1/4 | AL Type Finished Bore Jaw Coupling Hub

Brand: LOVEJOY
SKU: AL100X11/8HUB1/4
Availability: In Stock
truck-svgrepo-com

Ships in 1-2 business days

$102.49
$102.49
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Lovejoy AL100X1 1/8HUB1/4 is an AL Type Finished Bore Jaw Coupling Hub designed for efficiency in mechanical applications. This coupling hub is ideal for connecting two shafts, often used in motors and machinery where torque transmission is required. The aluminum construction ensures a lightweight solution while providing durability in various environments.

  • Lightweight design for ease of handling
  • Excellent resistance to corrosion and atmospheric conditions
  • Max RPM of 7000 for high-speed applications

Product Highlights

This coupling hub features a robust jaw design that accommodates significant rotational load and minimizes wear.

Product Information

Standard Information

  • Brand: Lovejoy
  • MPN: AL100X1 1/8HUB1/4

Technical Specifications

  • Coupling Size: AL100
  • No. of Jaws: 3
  • Approximate Bore: 2.12 inches
  • Insert Style: Jaw Type
  • Coupling Type: Jaw
  • Rated HP @ 3,600 rpm: 23.76 hp
  • Set Screw Size: 5/16-18
  • Outside Diameter: 2.41 inches
  • Bore Type: Finished Bore and Keyway
  • Keyway Size: 1/4 x 1/8
  • Material: Aluminum
  • Depth: 2.12 inches
  • Rated Power @ 100 rpm: 0.66 hp
  • Elastomeric Member: SOX (NBR) Rubber
  • Color: Silver
  • RPM [Max]: 7000 rpm
  • Length Through Bore: 1.37 inches
  • Bore Diameter [Max]: 1 3/8 inches
  • Hub Type: 2
  • Overall Length: 3.5 inches
  • Lock Type: Setscrew
  • Hub Diameter: 2.41 inches
  • Torque: 417 in lb
  • Rated HP @ 1,800 rpm: 11.9 hp
  • Bore Diameter [Min]: 1/2 inches
  • Rated HP @ 1,200 rpm: 7.92 hp
  • Weight: 0.56 lb
  • EAN or UPC: 685144179265
