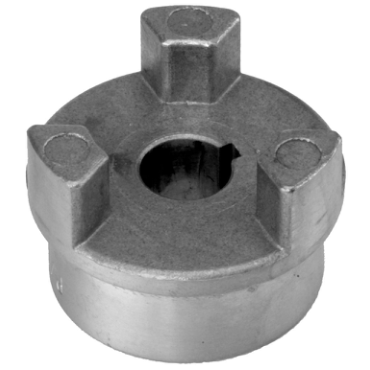

Lovejoy AL099X24MM HUB8 | AL Series Reborable Jaw Coupling Hub

Product Description

The Lovejoy AL099X24MM HUB8 is an AL Series Reborable Jaw Coupling Hub designed for various industrial applications. This coupling hub features a bore diameter of twenty-four millimeters and is made from aluminum, making it suitable for use in corrosive environments.

• Lightweight design
• Low overhung load
• Excellent resistance to atmospheric conditions

Product Highlights

This coupling hub includes one setscrew and is designed for easy installation and maintenance.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: AL099X24MM HUB8

Technical Specifications

• Coupling Type: Jaw
• Set Screw Size: 5/16-18
• Overall Length: 71.37 mm
• Approximate Bore: 45.21 mm
• Lock Type: Setscrew
• Bore Dia. [Min]: 13.0000 mm
• Rated HP @ 3,600 rpm: 18 hp
• Keyway Size: 8 x 3.3
• Hub Type: 2
• Outside Dia.: 52.32 mm
• Rated HP @ 1,800 rpm: 9 1/10 hp
• Color: Silver
• No. of Jaws: 3
• Coupling Size: AL099
• Length Through Bore: 26.16 mm
• Depth: 1.78 inches
• Bore Dia. [Max]: 30.0000 mm
• RPM [Max]: 7000 rpm
• Torque: 318 in lb
• Material: Aluminum
• Rated Power @ 100 rpm: 1/2 hp
• Elastomeric Member: SOX (NBR) Rubber
• Rated HP @ 1,200 rpm: 6 hp
• Hub Dia.: 2 1/16 inches
• Weight: 0.39 lb
• EAN or UPC: 685144586261
