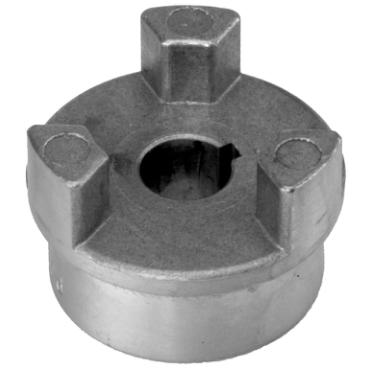

Lovejoy AL099X11/8HUB1/4 | AL Type Finished Bore Jaw Coupling Hub

Product Description

The Lovejoy AL099X11/8HUB1/4 is an AL Type finished bore jaw coupling hub designed for use in various mechanical systems. This hub delivers reliable performance in applications requiring flexible movement and alignment. It features a durable aluminum construction that ensures long-term resistance against corrosive surroundings.

• Includes one setscrew for secure installation
• Lightweight for easy handling
• Suitable for use in high RPM settings

Product Highlights

This coupling hub is ideal for coupling two rotating shafts while eliminating misalignment issues.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: AL099X11/8HUB1/4

Technical Specifications

• Torque: 318 in lb
• Bore Diameter [Min]: 1/2 in
• Overall Length: 2.81 in
• Hub Type: 2
• Maximum RPM: 7000 rpm
• Outside Diameter: 2.06 in
• Set Screw Size: 5/16-18
• Coupling Size: AL099
• Coupling Type: Jaw
• Rated HP @ 1,200 rpm: 6 hp
• Depth: 1.78 in
• Length Through Bore: 1.03 in
• Bore Type: Finished Bore and Keyway
• Rated HP @ 1,800 rpm: 9 1/10 hp
• Keyway Size: 1/4 x 1/8
• Insert Style: Jaw Type
• Material: Aluminum
• Lock Type: Setscrew
• Number of Jaws: 3
• Hub Diameter: 2.06 in
• Color: Silver
• Bore Diameter [Max]: 1.1870 in
• Elastomeric Member: SOX (NBR) Rubber
• Inch/Metric: Inch
• Weight: 0.39 LB
• EAN or UPC: 685144178893
