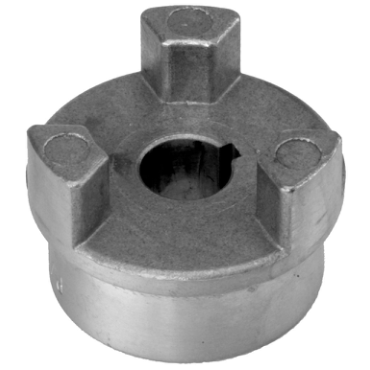

Lovejoy AL095X16MM HUB5 | AL Type Finished Bore Jaw Coupling Hub

Product Description

The Lovejoy AL095X16MM HUB5 is an AL Type finished bore jaw coupling hub designed for efficiency and functionality. This aluminum coupling hub features a bore size of sixteen millimeters and includes one setscrew for secure mounting.

• Lightweight design
• Low overhung load
• Excellent resistance to atmospheric conditions

Product Highlights

This coupling is ideal for corrosive environments and offers reliable performance in various applications.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 102132281

Technical Specifications

• Material: Aluminum
• Color: Silver
• Overall Length: 63.5 mm
• Hub Diameter: 2 1/8 inches
• Outside Diameter: 53.85 mm
• Coupling Size: AL095, 095
• Torque: 21.92 N-m
• Length Through Bore: 1 inch
• Maximum RPM: 9000 rpm
• Bore Diameter: 0.630 inches - 16 mm
• Coupling Type: Jaw
• Lock Type: Setscrew
• Keyway Size: 5 x 2.3
• Weight: 0.33 lb
• EAN or UPC: 685144470140
