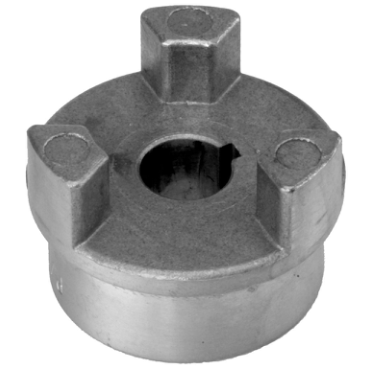

Lovejoy AL090X7/8HUB3/16 | AL Type Finished Bore Jaw Coupling Hub

Product Description

The Lovejoy AL090X7/8HUB3/16 is an AL Type Finished Bore Jaw Coupling Hub designed for efficient power transmission. This coupling is suitable for various applications in mechanical setups. It features a lightweight aluminum build that provides excellent resistance to atmospheric conditions, making it ideal for corrosive environments.

• Coupling size: AL090
• Max bore diameter: 7/8 inch
• Includes one setscrew

Product Highlights

The coupling offers reliability and durability in demanding settings.

Product Information

Standard Information

• Brand: Lovejoy
• Model: AL090X7/8HUB3/16

Technical Specifications

• Keyway Size: 3/16 x 3/32
• Approximate Bore: 1.43 inches
• Hub Type: 2
• Rated Power @ 100 rpm: 0.23 hp
• Rated HP @ 1,200 rpm: 2.76 hp
• Outside Diameter: 1.53 inches
• Torque: 144 in lb
• Bore Diameter [Max]: 7/8 inch
• RPM [Max]: 9000 rpm
• No. of Jaws: 3
• Coupling Type: Jaw
• Elastomeric Member: SOX (NBR) Rubber
• Hub Diameter: 1.53 inches
• Set Screw Size: 1/4-20
• Bore Type: Finished Bore and Keyway
• Overall Length: 2.34 inches
• Rated HP @ 3,600 rpm: 8.28 hp
• Length Through Bore: 0.91 inches
• Insert Style: Jaw Type
• Material: Aluminum
• Bore Diameter [Min]: 1/4 inch
• Lock Type: Setscrew
• Weight: 0.25 lb
• EAN or UPC: 685144108029
