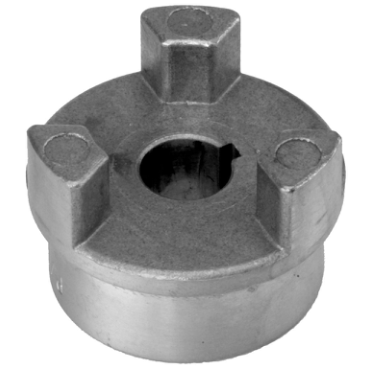

Lovejoy AL090X3/4HUB3/16 | AL Type Finished Bore Jaw Coupling Hub

Product Description

The Lovejoy AL090X3/4HUB3/16 is an AL Type Finished Bore Jaw Coupling Hub. This coupling hub is suitable for various industrial applications due to its robust design. It features a three-jaw configuration that enhances its performance characteristics.

• Lightweight design
• Resistant to atmospheric conditions
• Ideal for corrosive environments

Product Highlights

This coupling hub provides reliable power transmission while maintaining low weight, making it suitable for multiple setups.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: AL090X3/4HUB3/16

Technical Specifications

• Rated HP @ 1,200 RPM: 2.76 hp
• Rated HP @ 1,800 RPM: 4.11 hp
• Rated HP @ 3,600 RPM: 8.28 hp
• Max RPM: 9000 rpm
• Coupling Size: AL090
• Length Through Bore: 0.91 in
• Approximate Bore: 1.43 in
• Bore Dia (Max): 7/8 in
• Bore Dia (Min): 1/4 in
• No. of Jaws: 3
• Material: Aluminum
• Weight: 0.25 lb
• Lock Type: Setscrew
• Keyway Size: 3/16 x 3/32
• Outside Diameter: 1.53 in
• Overall Length: 2.34 in
• Torque: 144 in lb
